Lathe Meteorology: Environmental Control in Record Cutting

Lathe cutting isn’t just audio work — it’s environmental control.
Temperature, humidity, air pressure, and mechanical alignment all affect how a record is cut.
Every component in the system interacts with the room’s climate and the material being recorded.

Temperature Control

All cutting materials expand and contract with temperature.
PETG, polycarbonate, and acrylic soften as they warm and harden as they cool.
Warm blanks cut quieter but can produce burrs and sticking swarf.
Cold blanks cut louder but risk chatter and surface noise.

Ideal range: 68–74°F (20–23°C).
Both the lathe and blanks should sit in that range for several hours before cutting.
Infrared thermometers are used to monitor blank, head, and room temperatures for consistency.

Humidity and Static

Humidity directly affects static charge and chip formation.
When relative humidity drops below 35%, static buildup attracts dust and swarf.
Above 60%, excess moisture begins to absorb into the blank surface, softening the cut and causing swarf to clump or stick.
This can lead to chip jams, stylus drag, and increased wear on both the diamond and the blanks.

Maintain 45–50% RH in the cutting room.
Digital hygrometers with automatic humidifiers or dehumidifiers keep conditions stable.
Balanced humidity allows clean chip ejection, prevents charge buildup, and keeps both the material and cutting stylus in a safe range.

Air Pressure and Movement

Barometric pressure affects suction systems and chip collection.
A low-pressure day can reduce vacuum efficiency and change swarf behavior.
Airflow from vents or fans cools one side of the disc and can warp cuts or shift groove depth.

The cutting area should be calm and still — no drafts, no forced air directly across the platter.

Static Control and Ozone

Some anti-static fans use corona discharge ionization to neutralize charge.
These generate ozone (O₃), which corrodes metal and irritates lungs.
Consumer units often exceed 0.05 ppm ozone at close range.

Avoid air-blowing ionizers.
Use zero-ozone ionizing bars or simple grounding methods instead:

• Maintain proper humidity (45–50% RH)

• Use ESD wrist straps, grounded mats, and carbon-fiber brushes

• Apply a balanced anti-static spray to the blank

Surface Conditioning and Static Control

Surface preparation is critical for stable cutting.
A controlled anti-static treatment is applied to balance surface charge and improve glide.
The goal isn’t coating — it’s creating uniform conductivity across the blank so static can discharge evenly during the cut.

Applied correctly, the treatment prevents buildup, keeps the stylus moving smoothly, and ensures consistent groove formation without leaving residue.

Cutter Head Torque, Angle, and Mass

The mechanical setup of a record lathe depends on more than mounting torque.
Rake angle, cutter head mass, and the density of the plastic being cut all interact to define groove geometry and stylus load.
The goal is to keep the cutting head seated firmly enough to maintain alignment, but compliant enough to absorb the forces created at the tip.

Heavier heads require more downforce and generate greater thermal buildup.
Lighter heads respond faster but are more sensitive to vibration and drag.
Different plastics — PETG, polycarbonate, or acrylic — resist the stylus differently, altering the effective cutting pressure.

Mounting tension, head weight, and cutting angle must therefore be balanced together, not treated as separate adjustments.
Small changes in one affect the others — and the sound that ends up in the groove.

Leveling and Reference Surfaces

A level cutting surface prevents depth variation and channel imbalance.
The lathe is leveled using digital machinist levels and dial indicators to verify platter runout and head height.
A granite surface plate is used as the base to prevent movement from temperature or humidity changes.
Granite provides long-term stability and vibration isolation.

Turntable and Drive System

The Technics SP-10R motor is ideal for record cutting because its high-torque direct drive maintains speed under the heavy drag of the cutting stylus.
The platter’s weight adds rotational inertia, keeping speed constant during modulation.
As the motor and bearing warm up, viscosity and torque shift slightly, so the unit should reach full operating temperature before calibration.

Playback turntables like the SL-1200 don’t have enough torque or platter mass to resist cutting drag.
They’re designed for playback, not for cutting under load.

Blank Preparation and Temperature Balance

Record cutting isn’t about heating blanks — it’s about controlling the temperature of the entire environment.
The cutting room, blank, and stylus all share the same thermal system.
When the room is stable and the blanks match that temperature, the groove forms predictably.

Additional heat from lamps or the stylus itself can help with flow, but too much combined heat creates static, makes swarf cling to the surface, and can even damage a stylus or ruin a cut.
The goal is balance — warm enough for clean chip release, cool enough to avoid buildup.

A stable room temperature, controlled stylus heat, and steady airflow do more for cut quality than any amount of external heating.

Stylus Cleaning

During cutting, friction causes small amounts of melted plastic to collect on the diamond tip.
Residue buildup increases friction, raises heat, and can cause groove noise or drag.

Cleaning should be done carefully under magnification using non-abrasive tools such as a pith stick or fine swab.
A mild solvent can be used sparingly to dissolve polymer buildup, but excessive use can damage the adhesive bond or metal around the stylus mount.

The goal is simple — keep the diamond clean, cool, and free of residue so it can cut efficiently without added heat or resistance.

Instrumentation

Precision tools track all environmental and mechanical variables:

• Infrared thermometer – blank, head, and room temps

• Hygrometer – humidity monitoring

• Barometer – air pressure

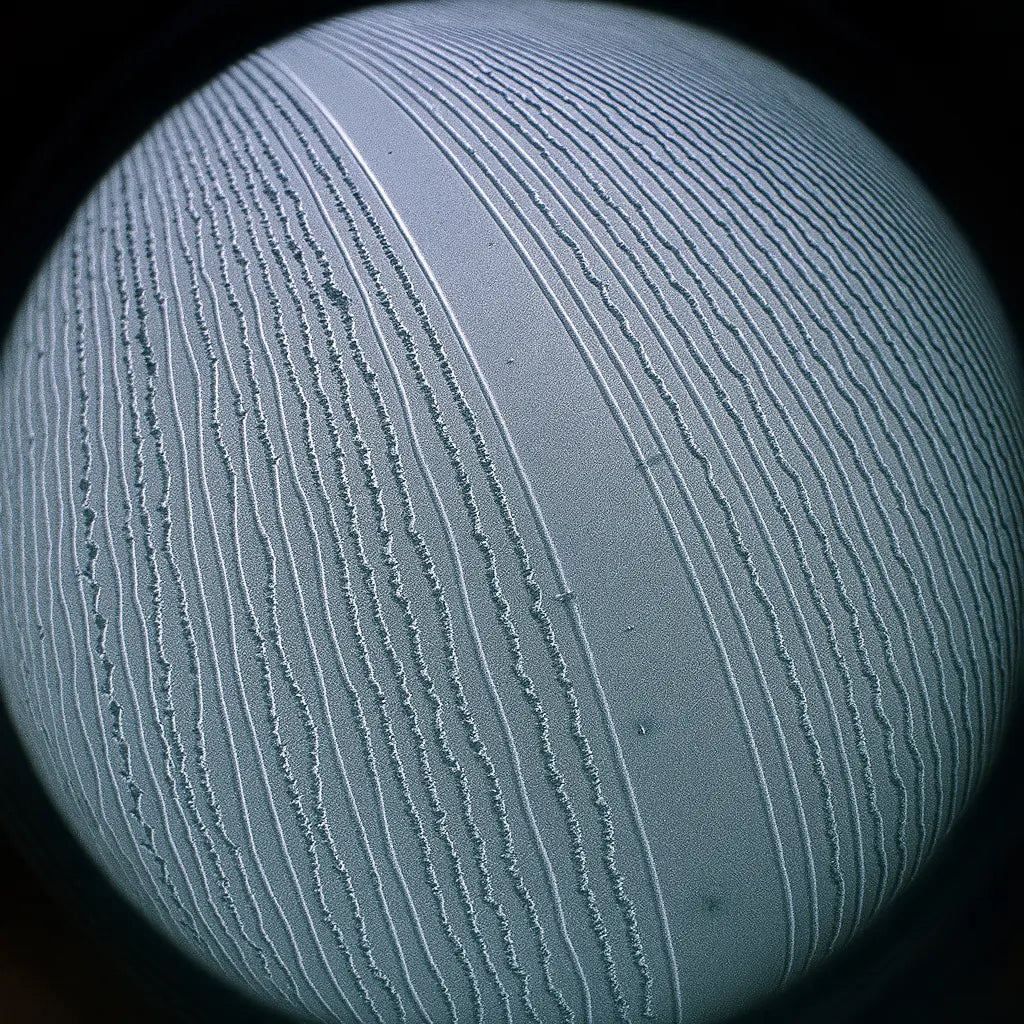

• Microscope – groove inspection.

• Dial indicator / digital level – geometry checks

Data logging ensures repeatable cutting conditions day to day.

Environmental vs. Mechanical Control

CNC machining relies on coolants, enclosures, and code for precision.
Record cutting takes place in open air where heat, charge, and humidity are constantly changing.
A machinist controls geometry; a cutter controls atmosphere.

CNC machines isolate parts from the environment.
Lathe cutters work with the environment — turning air, heat, and pressure into sound.

Lathe Meteorology is the science of keeping all of that stable — the environment, the machine, and the plastic — so every record cuts clean, consistent, and true.
