RIAA vs IRIAA: The Science, History, and Calibration Behind Vinyl EQ

How Cutting Curves, Tape, and Modern Tech Shape Every Groove

Every record — pressed, cut, or carved — carries a hidden fingerprint: an EQ curve that defines how the music was recorded and how it should be played back.
The most famous pair of these curves are RIAA and IRIAA, two mirror images that make the physics of vinyl possible.

At LatheCutVinylRecords.com, understanding these curves isn’t theory — it’s daily practice.
From the first Decca 78s to modern PETG lathes, these standards bridge art, science, and engineering.

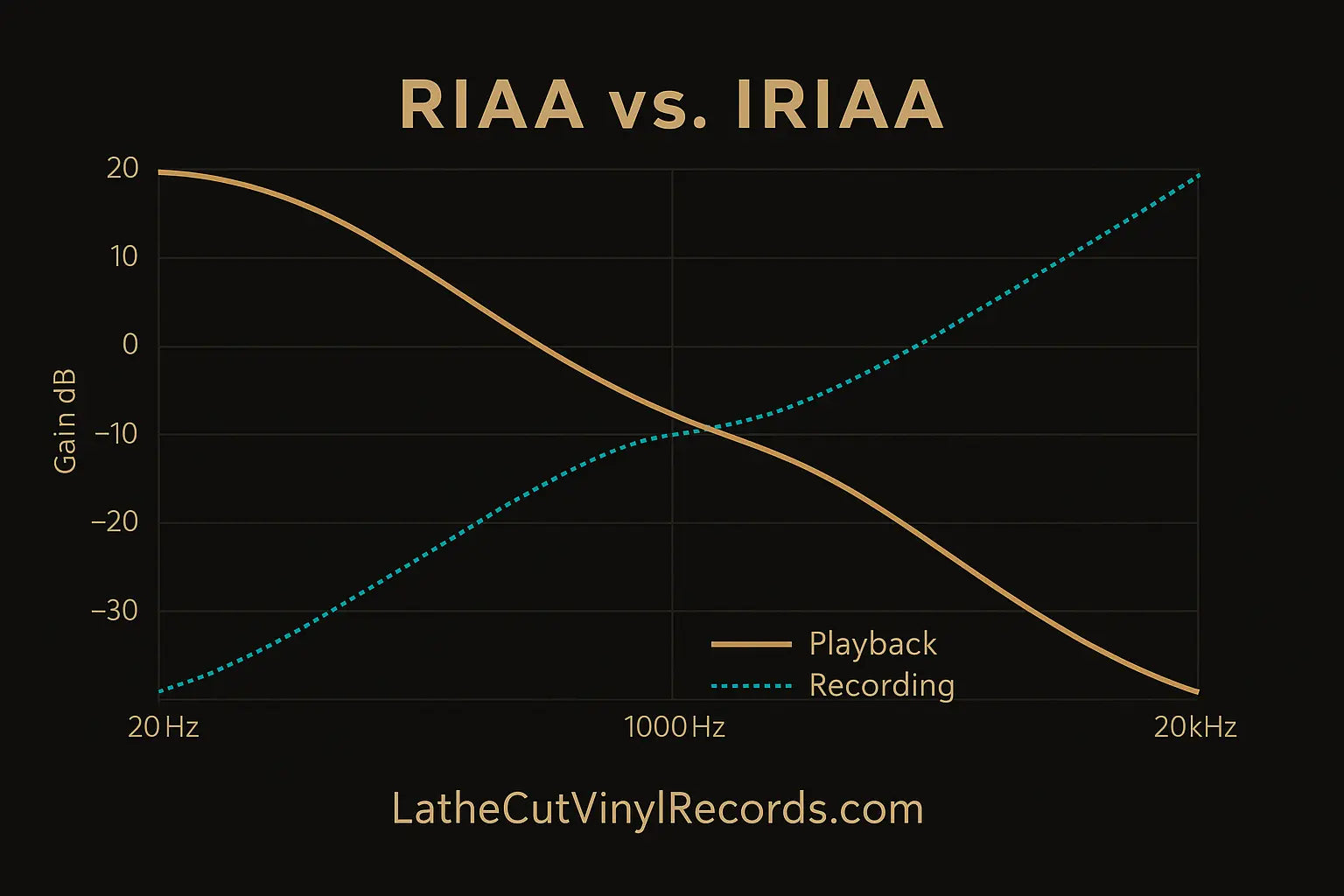

The RIAA Playback Curve

The RIAA curve is the universal playback standard built into every modern phono preamp. It corrects the tone of a record by applying an EQ that boosts bass and reduces treble, restoring balance to the sound.

When a record is cut, engineers intentionally do the opposite: they reduce bass and boost treble.
This makes the groove narrower (so bass doesn’t blow the walls apart) and raises the high frequencies above surface noise.
On playback, the RIAA preamp inverts that EQ, flattening the frequency response.

It’s a perfect mirror system:

• IRIAA (cutting): reduce groove distortion, fit more music per side.

• RIAA (playback): restore natural tone and warmth.

RIAA vs IRIAA

How Treble, Sibilance, and Phase Affect the Cutter Head

Boosting treble during cutting sounds simple — but physically, it’s brutal.
High frequencies force the cutting stylus to oscillate thousands of times per second, generating heat and mechanical strain.

That IRIAA treble boost means:

• More current through the cutting coils

• Greater acceleration of the stylus assembly

• Higher head temperatures (especially at 10–18 kHz)

• Potential chatter or “grain” on soft materials like PETG or polycarbonate

Sharp consonants (“S” and “T” sounds) become dangerous because they create dense, high-amplitude modulations.
That’s why mastering engineers always use de-essers, dynamic EQ, and phase alignment before hitting the lathe — to keep that mechanical stress under control.

RIAA vs IRIAA

The 45/45 Stereo Geometry and Phase Science

Vinyl stereo isn’t literally left and right. It’s two 45°-angled channels etched into one groove.

• L + R (mono) moves the stylus side-to-side (lateral).

• L – R (difference) moves it up-and-down (vertical).

Perfectly in-phase signals create clean lateral grooves — loud, stable, easy to track.
Out-of-phase material (stereo reverb tails, doubled vocals, wide synths) adds vertical motion, which eats up groove depth and playback headroom.

The IRIAA treble boost amplifies that imbalance. Once a record is cut, the RIAA playback EQ can’t “fix” vertical over-modulation — it’s already physical.
That’s why cutters always:

• Mono the low end

• Tighten stereo phase above ~6 kHz

• Preview the IRIAA curve in mastering to check how highs behave mechanically

Phase isn’t just sound — it’s geometry.

A Short History of Recording Curves: Decca, NAB, Columbia, and RIAA

Before 1954, there was no single playback standard.
Every label — Decca, RCA, Columbia, NAB — had its own EQ philosophy.

Decca’s EQ gave 78s more brilliance; Columbia’s was smoother; NAB optimized for AM broadcast tone.
By the early 1950s, playback chaos forced standardization — the RIAA curve unified the world. One preamp could finally play every record.

78 RPM vs. 33 ⅓ RPM — How Speed Changes the Equation

Groove velocity controls everything.
At 78 RPM, the stylus moves across the groove over twice as fast as at 33 ⅓, so highs are naturally reproduced with less distortion.
But that speed limited playing time and required shallow bass to keep grooves narrow.

When the LP arrived, slower speeds meant lower groove velocity and longer playtime, but also made high frequencies harder to cut cleanly.
RIAA’s constants were redesigned: more treble boost in the IRIAA curve, more treble reduction in playback, and deeper bass compensation.

RPM isn’t just rotation — it’s frequency physics.

Modern Dynamic Cutting Heads and Custom EQ Tuning

At LatheCutVinylRecords.com, our dynamic cutter heads are precision instruments — each one unique.
The materials, coils, and mechanical damping inside the head define its frequency response long before EQ is applied.

We calibrate every head individually using:

• Pink noise and sweep tones

• FabFilter Pro-Q EQ Match

• Phase correlation and thermal stability tests

From that data, we design a custom IRIAA correction curve that perfectly matches the head’s response and mechanical resonance.
That process lets our dynamic heads rival vintage feedback systems — clean highs, deep bass, and stable imaging — without internal feedback coils.

Digital EQ correction has closed the gap between DIY and professional mastering lathes forever.

Tube vs. Solid-State Playback — Why All Preamps Aren’t Equal

Even though RIAA EQ is standardized, preamps shape tone.

• Tube phono stages add harmonic lift, softening transients and imparting midrange warmth — similar to the gear that cut classic 1950s masters.

• Solid-state preamps reproduce the curve with surgical accuracy, tighter bass, and less coloration, but can sound sterile on vintage material.

For early jazz or soul, tube playback recreates the intended feel.
For modern cuts from digital masters, solid-state precision ensures the mix translates perfectly to vinyl.

RIAA is math — but playback is personality.

Stylus Geometry and Groove Behavior

Your playback stylus determines how the groove is interpreted.

Common DJ cartridges — like Ortofon Concorde, Ortofon Blue Line, or Shure M44-7 — use spherical or elliptical styli that ride slightly higher in the groove. They’re forgiving and ideal for PETG or polycarbonate lathes.

Advanced “microline,” “shibata,” or “electrical contact” tips reach deeper, offering more detail on pressed vinyl but too much pressure for soft-cut materials.
They can dig below the cut plane, damaging grooves over repeated plays.

We test every cut with DJ-style cartridges to ensure longevity, stability, and realistic playback behavior.
If it plays clean on those, it’ll sound great on anything.

DIN 45 541, NAB, and the Influence of Tape

DIN 45 541 — The Vinyl Reference Standard

Our cutting chain follows DIN 45 541, where
0 dB = 1 kHz at 5 cm/s RMS lateral velocity, equivalent to –20 dBFS RMS in digital calibration.
This standard links digital reference levels to real-world groove velocity — the bridge between theory and stylus motion.
It ensures every cut maintains consistent loudness and mechanical safety, no matter the program source.

NAB and Tape Alignment

Before digital audio, vinyl masters came from magnetic tape aligned to NAB or CCIR reference flux levels.
Tape itself had its own EQ curve:

• Bass pre-emphasis to overcome head saturation.

• Treble pre-emphasis to fight hiss.

• Natural compression through magnetic saturation.

That meant tape and vinyl shared the same logic: pre-emphasize highs, roll off lows, then reverse it later.
Tape smoothed peaks and glued transients together — a perfect match for vinyl’s physical limits.

Digital Compression and Modern Loudness

Digital recording broke those natural constraints.
Today, many mixes arrive around –9 LUFS or hotter — far above the –20 RMS standard that vinyl heads expect.
A cutter calibrated for DIN 45 541 simply can’t cut that loud without distortion, overheating, or groove over-modulation.

That’s why vinyl mastering today includes dynamic range restoration:

• Lowering average level

• Recovering transient headroom

• Re-balancing lows and highs for IRIAA translation

Sometimes engineers even use tape emulation plugins or gentle analog compression to restore that classic curve-to-curve balance — the sweet spot between control and openness.

Tape was never an accident — it was the perfect pre-conditioner for vinyl.

How to Hear the Curves Yourself

You can simulate the entire chain at home:

1. Load your mix into FabFilter Pro-Q or any linear-phase EQ.

2. Apply an IRIAA curve to hear what your cutter will experience.

3. Switch to mono — this tests low-end phase like a real lathe.

4. Listen to highs: if cymbals or “S” sounds leap out, they’ll stress a cutter head.

5. Then apply an RIAA playback curve afterward to simulate real turntable playback.

This is the simplest, most powerful way to understand how your mix translates physically — before a single groove is cut.

The Takeaway

From Decca’s shellac discs to digital lathe cuts, the history of vinyl EQ is a dialogue between mechanics and music.
The IRIAA curve sculpts the groove; the RIAA curve restores it.
Tape, DIN standards, and modern EQ tools link them across generations.

Whether you’re mastering from reel-to-reel, Pro Tools, or an MPC, the principle is the same:
Control your spectrum, respect the physics, and trust the curve.

At LatheCutVinylRecords.com, we stand on 70 years of evolving science — cutting records by hand, one perfectly balanced groove at a time.
